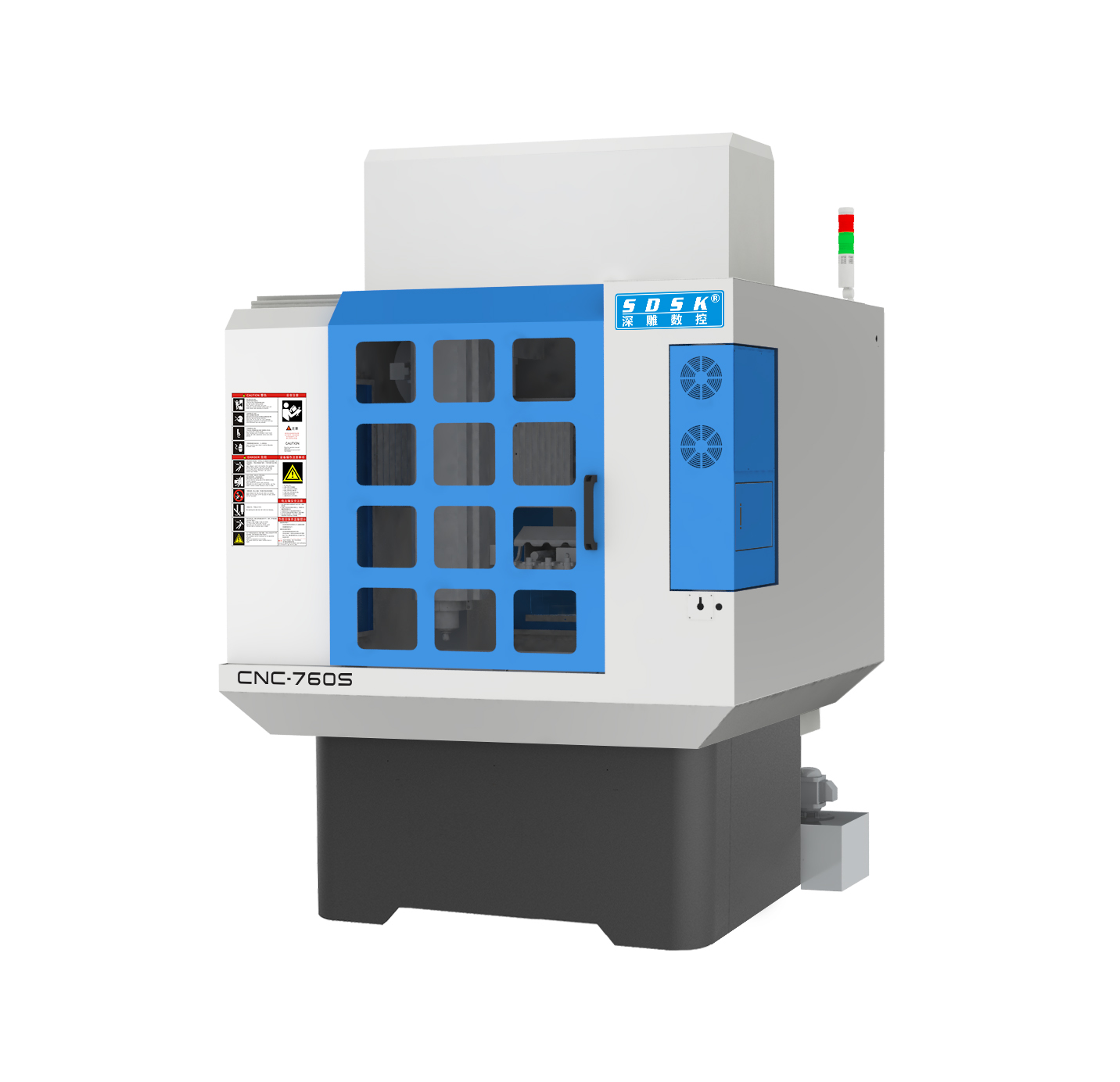

Machine Introduction:
The SDSK760S series model is a large aluminum precision carving machine specially designed for customers; Equipped with a 10 position straight row tool magazine; The movement mode is to move the Y-axis workbench forward and backward, the X-axis to move left and right, and the Z-axis to move up and down. Deep carving CNC system with simple operation interface (based on Frank technology); The body adopts top-notch Jinan granite (marble) structure, which never deforms; Three axis adopts imported Taiwan Shangyin precision linear guide rail, Taiwan TBIC4; Grinding grade ball screw, German coupling, Japanese Yaskawa servo motor, power distribution cabinet thermostatic system, advanced spindle refrigeration system, automatic lubrication system, coolant spray system, air filter device, ensure higher processing accuracy, speed and stability; Especially suitable for precision highlight, engraving and milling, and tapping processing of various copper, aluminum, acrylic, plastic and other parts< Br/>
Additionally, a fourth rotary shaft, side milling head, and probe function can be added. If higher requirements are needed for the highlight effect, an additional 100000 rpm spindle, frequency converter, and jacket can be equipped, and the 30000 rpm spindle can be exchanged< Br/>
&Nbsp< Br/>
< Br/>
&Nbsp< Br/>
&Nbsp;
2、 Technical parameter description:
Number
name
unit
SDSK760S
one
External dimensions
rice
1.5 * 1.9 * 2.4
two
Workbench size
Mm
700 * 600
three
X/Y/Z stroke
Mm
700 * 600 * 230
four
Fast movement speed
M/min
twenty-eight
five
Spindle rotation speed
R/min
thirty thousand
six
Spindle power
Kw
seven point five
seven
Straight row tool magazine
position
8 digits
eight
Knife alignment method
&Nbsp;
automatic
nine
Clamping tool
&Nbsp;
3.175/4/6/8/10/12/16
ten
Loading height
Mm
one hundred and eighty
eleven
The countertop bears a load
Kg
two hundred
twelve
Rated voltage
&Nbsp;
Three phase five wire 380V/50HZ
thirteen
Maximum power of the entire machine
Kw
ten
fourteen
Overall weight
Kg
one thousand and eight hundred
&Nbsp< Br/>
3、 List of main machine configurations:
Number
Regulations; Grid; Speak; bright
1.
Outer cover: 2mm steel plate, baked paint (stainless steel water tank)
2.
Aluminum workbench dimensions: 2000 in X direction, 1200 in Y direction, and 50 in Z direction
3.
Marble body, marble crossbeam
4.
Cast iron mechanical parts
5.
Japanese Yaskawa servo motor for XYZ axis
6.
Use Taiwan Shangyin for XYZ axis; P-level linear guide rail;
7.
Taiwan TBI for XYZ axis; C3 grade grinding ball screw
8.
Deep Engraving CNC System (Frankish Technical Fundamentals)
9.
Distribution cabinet constant temperature system
10.
Variable frequency drive;
11.
Schneider Electric Accessories
12.
Deep carving electric spindle (models BT30/7.5-125); 30000rpm, 7.5KW, with encoder, using BT30 blade handle, outer diameter 125mm, with encoder
13.
Straight 10 position tool magazine (steel claw)
14.
Imported NSK; P-grade angular contact paired bearings
15.
Spindle water cooler
16.
Electronic handwheel
17.
Knife alignment instrument
18.
X/Z-axis equipped with three proof cloth organ cover, Y-axis steel plate cover
19.
X/Y/Z axis plastic drag chain
20.
Automatic lubrication oil pump 2 liters
21.
air filter
22.
Water spraying and water air mixing spray device
23.
water pump
24.
Machine tool accessories
25.
BT30 knife handle
26;
Y-axis automatic slag discharge
