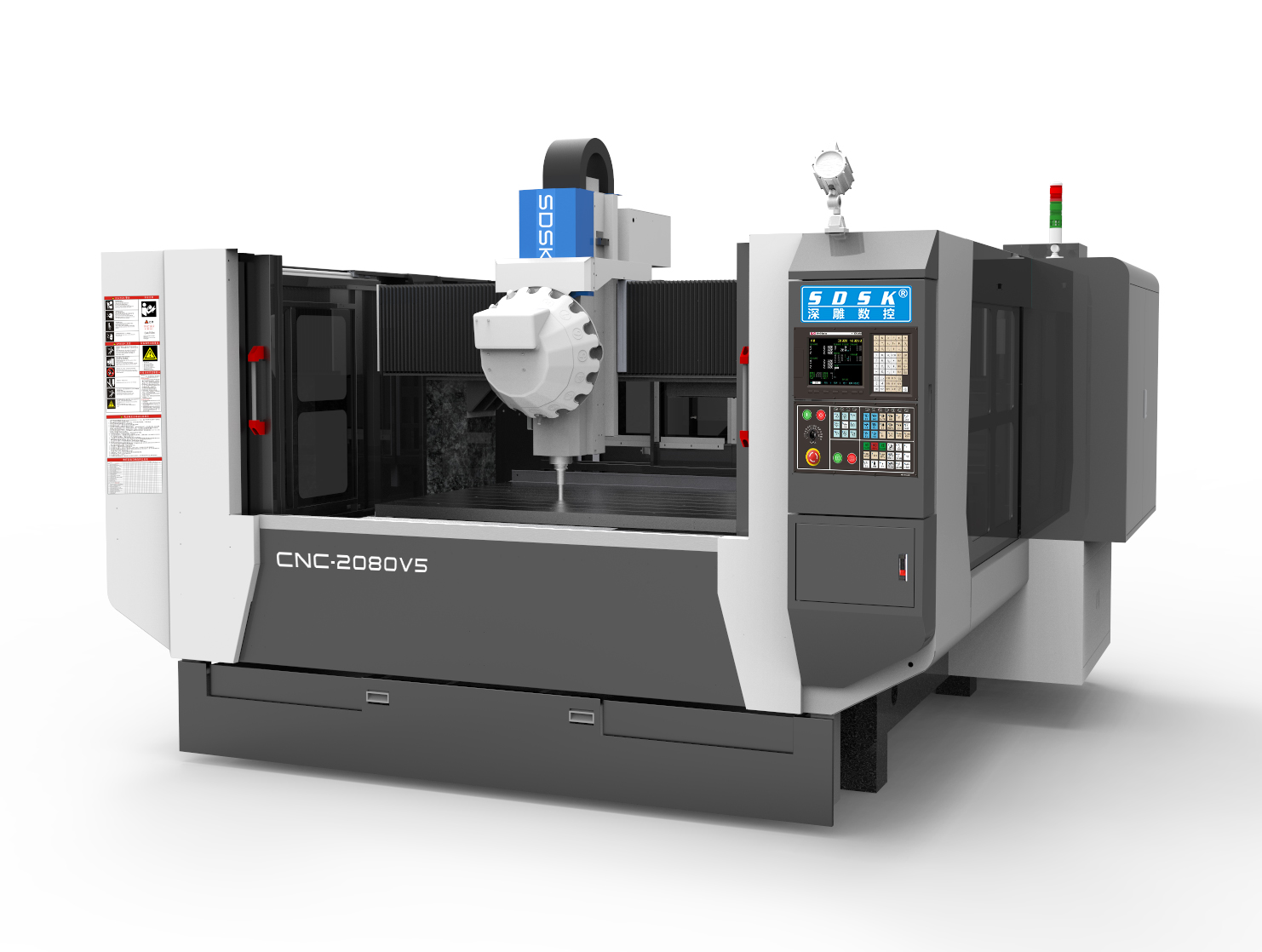

1、 Machine Introduction:
The SDSK-V5 upgraded model series is an aluminum profile precision carving machine specially designed for customers; Equipped with Taiwan Shengjie 16 or 21 bit UFO style tool magazine, the tool changing speed is 2 seconds, greatly improving production efficiency; The motion mode is to move the Y-axis workbench forward and backward, the X-axis machine head moves left and right, and the Z-axis spindle moves up and down. Marble (granite) body structure; Adopting deep carving CNC system and servo motor; The three-axis adopts Shangyin/Yintai precision linear guide, precision ball screw, German coupling, advanced spindle refrigeration system, automatic lubrication system, coolant circulating water spray and spray system, ensuring higher processing accuracy, speed and stability;; Especially suitable for precision engraving, milling, drilling, and tapping of various copper, aluminum, acrylic, plastic and other parts< Br/>
Additionally, a fourth rotary shaft, side milling head, and probe function can be added< Br/>
2、 List of Main Machine Configuration (Unit: mm)
Number
Regulations; Grid; Speak; bright
quantity
&Nbsp;
Marble body, marble crossbeam, cast iron mechanical parts, outer cover made of 2mm steel plate, baked paint (stainless steel water tank)
full set
&Nbsp;
Aluminum workbench size with T-groove
1 set
&Nbsp;
Deep carving CNC system (Frankish technical foundation)/3-axis servo motor/spindle servo drive
full set
&Nbsp;
Use Taiwan Shangyin for XYZ axis; Precision linear guide rail
full set
&Nbsp;
Taiwan TBI for XYZ axis; Precision grade grinding ball screw
full set
&Nbsp;
Electric spindle (models BT30/7.5-125); 30000rpm, 7.5KW, outer diameter 125mm, with encoder
1 unit
&Nbsp;
Taiwan Shengjie 16 or 21 bit UFO style knife magazine (optional)
1 set
&Nbsp;
Imported NSK; P-grade angular contact paired bearings
full set
&Nbsp;
Spindle water cooler
1 unit
&Nbsp;
Distribution cabinet constant temperature system
&Nbsp;
&Nbsp;
Schneider Electric Accessories
&Nbsp;
&Nbsp;
Electronic handwheel
1 set
&Nbsp;
Knife alignment instrument
1 unit
&Nbsp;
X/Y/Z axis with three proof cloth organ cover
1 set each
&Nbsp;
X/Y/Z axis plastic drag chain
1 set each
&Nbsp;
Automatic lubrication grease pump
1 set
&Nbsp;
air filter
2 sets
&Nbsp;
Water spraying and water air mixing spray device
2 sets each
&Nbsp;
Water pump LDPB 4-18/480W
1 set
&Nbsp;
Machine tool accessories
1 set
&Nbsp;
BT30 knife handle
Two
&Nbsp;
Main technical parameters of the equipment: (unit: mm)
List One:
model
1060V5
1380V5
1780V5
2080V5
2012V5
Appearance - length * width * height
2300 * 2300 * 2500
2900 * 2700 * 2800
3100 * 2700 * 2800
3450 * 2700 * 3000
3450 * 3530 * 3000
Workbench size
1000 * 600
1300 * 800
1700 * 800
2000 * 800
2000 * 1200
Gantry width
one thousand and one hundred
one thousand and four hundred
one thousand and eight hundred
two thousand and one hundred
two thousand and one hundred
Spindle nose end to countertop
four hundred and fifty
four hundred and fifty
four hundred and fifty
four hundred and fifty
four hundred and fifty
X/Y/Z stroke
1050 * 650 * 350
1350 * 850 * 350
1750 * 850 * 350
2050 * 850 * 350
2050 * 1250 * 350
Maximum air travel speed
48000mm/min
48000mm/min
48000mm/min
48000mm/min
48000mm/min
Maximum processing speed
12000mm/min
12000mm/min
12000mm/min
12000mm/min
12000mm/min
control system
Deep carving CNC system
Deep carving CNC system
Deep carving CNC system
Deep carving CNC system
Deep carving CNC system
servo system
AC servo
AC servo
AC servo
AC servo
AC servo
System resolution
zero point zero zero one
zero point zero zero one
zero point zero zero one
zero point zero zero one
zero point zero zero one
Three axis verticality
0.015mm
0.015mm
0.015mm
0.015mm
0.015mm
Whole machine positioning accuracy
&Plusmn; 0.015mm
&Plusmn; 0.015mm
&Plusmn; 0.015mm
&Plusmn; 0.015mm
&Plusmn; 0.015mm
Localization accuracy
300mm± 0.01mm
300mm& Plusmn; 0.01mm
300mm± 0.01mm
300mm& Plusmn; 0.01mm
300mm& Plusmn; 0.01mm
Repetitive positioning accuracy
0.005mm
0.005mm
0.005mm
0.005mm
0.005mm
Number of spindles
1 unit
1 unit
1 unit
1 unit
1 unit
Electric spindle power
7.5KW
7.5KW
7.5KW
7.5KW
7.5KW
UFO style tool magazine/optional
16 bit/21 bit
16 bit/21 bit
16 bit/21 bit
16 bit/21 bit
16 bit/21 bit
Knife changing method
automatic
automatic
automatic
automatic
automatic
Spindle speed
30000rpm/min
30000rpm/min
30000rpm/min
30000rpm/min
30000rpm/min
Clamping tool handle
BT30
BT30
BT30
BT30
BT30
Knife alignment method
automatic
automatic
automatic
automatic
automatic
Loading height
300mm
300mm
300mm
300mm
300mm
The countertop bears a load
1000Kg
1000Kg
1000Kg
1500Kg
1500Kg
Rated voltage
380V/50HZ
380V/50HZ
380V/50HZ
380V/50HZ
380V/50HZ
Maximum power of the entire machine
13.5KW
13.5KW
13.5KW
14.5KW
14.5KW
Overall weight
4300Kg
4800Kg
5600Kg
6000Kg
7000Kg
Reference price
Including tax and freight
&Nbsp;
&Nbsp;
&Nbsp;
&Nbsp;
&Nbsp;
List 2:
model
2515V5
2520V5
3020V5
Appearance - length * width * height
4550 * 4230 * 3000
4550 * 5500 * 3000
5300 * 5500 * 3000
Workbench size X/Y
2500 * 1500
2500 * 2000
3000 * 2000
Gantry width
two thousand and six hundred
two thousand and six hundred
three thousand and one hundred
Spindle nose end to countertop
four hundred and fifty
four hundred and fifty
four hundred and fifty
X/Y/Z stroke
2550 * 1550 * 350
2550 * 2050
3050 * 2050 * 450
Maximum air travel speed
48000mm/min
48000mm/min
40000 mm/min
Maximum processing speed
12000mm/min
12000mm/min
12000mm/min
control system
Deep carving CNC system
Deep carving CNC system
Deep carving CNC system
servo system
AC servo
AC servo
AC servo
System resolution
zero point zero zero one
zero point zero zero one
zero point zero zero one
Three axis verticality
0.015mm
0.015mm
0.015mm
Whole machine positioning accuracy
&Plusmn; 0.02mm
&Plusmn; 0.02mm
0.02mm
Localization accuracy
300mm& Plusmn; 0.01mm
300mm& Plusmn; 0.01mm
300 mm± 0.01mm
Repetitive positioning accuracy
0.005mm
0.005mm
0.005mm
Number of spindles
1 unit
1 unit
1 unit
Electric spindle power
7.5KW
7.5KW
7.5KW
UFO style tool magazine/optional
16 bit/21 bit
16 bit/21 bit
16 bit/21 bit
Knife changing method
automatic
automatic
automatic
Spindle speed
30000rpm/min
30000rpm/min
30000rpm/min
Clamping tool handle
BT30
BT30
BT30Knife alignment method
automatic
automatic
automatic
Loading height
300mm
300mm
300mm
The countertop bears a load
2000Kg
2000Kg
2500Kg
Rated voltage
380V/50HZ
380V/50HZ
380V/50HZ
Maximum power of the entire machine
seventeen. 5KW
20KW
22KW
Overall weight
9000Kg
13000Kg
16000Kg
